Federal-Mogul Corporation (fdml:NASDAQ) has developed maintenance-free bearings for one of the world’s longest suspension bridges. Upon completion later this year, the Hardanger Fjord Bridge in southwest Norway will be one of the largest in the world, spanning 1,310 meters (4,297ft) between pylons. A total of 128 spherical plain bearings using Federal-Mogul’s DEVA self-lubricating material technology will accommodate the small but essential movements that occur between the bridge and its supporting cables.
“Wind pressure, load and vibrations from traffic flow and temperature changes are all contributors to road movement on suspension bridges,” explained August Stadlmayr, managing director of Federal-Mogul DEVA GmbH. “The Hardanger Fjord bridge was particularly challenging because of its length and the loads generated, so we are pleased to have developed such a low-maintenance, yet highly effective solution.”
Conventional roller bearings were not well-suited for the prolonged, minute movements of the bridge while under constant heavy load and could potentially suffer from surface failures called ‘brinelling.’ Federal-Mogul’s thin-walled, self-lubricating sliding material, deva.bm, addresses this issue by providing a larger load-carrying surface, providing sufficient durability for the life of the bridge without repair or replacement.
The design of each bearing installation ensures that even if the sliding layer became damaged by exposure to loads in excess of the design values, the structure of the joint is protected and the plain bearing would function at a reduced level.

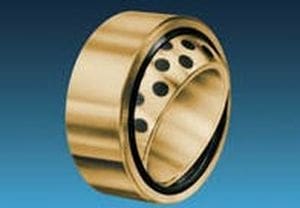

The complete bridge includes 120 spherical plain bearings with a shaft diameter of 160 mm and eight with a shaft diameter of 300 mm, used for the main retaining cables adjacent to the two bridge towers. The bearing solutions for these exceptionally challenging requirements was developed by Federal-Mogul DEVA GmbH, based in Stadtallendorf, Germany, where engineers used a combination of materials from DEVA’s standard, well-proven product range. The joint balls are made from stainless steel, which is pressed into a plain bearing made from deva.bm. A low-friction sliding bearing consists of a backing comprised of steel, stainless steel or bronze, with a deva.metal surface layer. This surface layer is a bronze material manufactured using powder metallurgy – it is not porous and oil-impregnated, but rather highly compressed and coated with a layer of solid lubricant material, such as graphite or PTFE.
The bearing housing forms a two-part spherical ring, also lined with deva.bm, to provide an extended, maintenance-free service life, high static and dynamic load capacity, and low friction properties resulting from layers of homogeneous solid lubricants.
The design is completed using thrust washers that are also made from deva.metal, which absorb axial forces. The bearings are ideal for dry running at slow sliding speeds with very high resistance and are well-suited for extreme temperatures and corrosion.
This is not the first time that DEVA plain bearings have provided reliable, low-maintenance solutions for bridge construction projects. A number of bridges around the world benefit from this Federal-Mogul technology, including the flap bridge in the port of Valencia, Spain over which the Formula 1 race circuit passes; the bridge over the Peene near Anklam, Germany; and the Rethe Bridge in Hamburg, Germany.
Some key facts about the Hardanger Fjord Bridge:
– 1,310m (4,297ft): span between pylons
– 55 m(180ft): height of highway above sea level
– 200m(656ft): height of bridge
###
