Mahr Federal bore and snap gages offer upgraded performance with integrated wireless data transmission

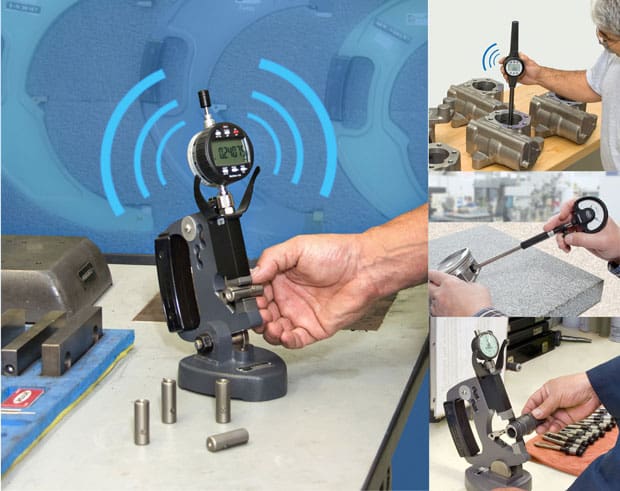

Mahr Federal bore and snap gages are available to replace TESA Brown and Sharpe Standard bore and snap gages, which have been discontinued. Mahr Federal gages allow users to upgrade performance with integrated wireless data transmission, and include Mahr Federal 1280 P and 844 N adjustable bore gages, along with 300 P snap gages.
| Mahr Federal Inc.1144 Eddy Street Providence, RI 02905 U.S.A.Phone: 401/784-3100 Fax: 401/784-3246 www.mahr.com |
Precision GagesHand Tools Dial and Digital Indicators Mechanical Gages Air Gages • Electronic Gages Height and Length Gages Gage Repair and Calibration Design and Build |
Metrology SystemsForm Metrology Gear Metrology Precision Length Metrology Surface and Contour Metrology Shaft Metrology Repair and Calibration Rotary Stroke Bearings |
Mahr Federal 1280 P adjustable bore gages feature rugged construction for long life and low maintenance, including a stainless steel gaging head and one piece centralizing yoke with replaceable tungsten carbide balls. Furnished with either a dial or digital indicator and available with integrated wireless data transmitters, 1280 P bore gages are sized to measure diameters from 12 – 200 mm (0.50 – 8″) with extensions, and depths from 76 – 1220 mm (3 – 48″).
Also available with integrated wireless transmission, Mahr Federal’s precision self-centering 844 N adjustable bore gages are virtually impervious to temperature changes as both the shank and transfer rod are made from Invar steel. Extremely versatile and quick to adjust to any size within their range, 844 N bore gages can be used to measure diameter, roundness, and conical form, as well as the distances of plane-parallel surfaces of tight tolerance parts. Able to measure diameters from 18 – 800 mm (0.7 – 32″), they provide low hysteresis and high repeatability.
Mahr Federal 300 P snap gages provide fast precise OD measurement on the shop floor. Available over a wide range of sizes, styles and readout configurations, they provide measuring capacity from 0 – 508 mm (0 – 20″) and are available with integrated wireless transmitters and dial or digital indicators. A unique “Channel Lock” design assures precisely parallel anvil surfaces, with positive position locking at any point within the range.
Mahr Federal Inc., a member of the Mahr Group, has been providing dimensional measurement solutions to fit customer application needs for over 150 years. The company manufactures and markets a wide variety of dimensional metrology equipment, from simple and easy-to-use handheld gages to technically advanced measurement systems for form, contour, surface finish and length. Mahr Federal is also well known as a producer of custom-designed gages and a provider of calibration and contract measurement services. Mahr Federal’s calibration laboratories are accredited to ISO/IEC 17025:2005 NVLAP Lab Code 200605-0 (see our Scope of Accreditation for accredited calibration processes). For more information visit http://www.mahr.com
