Large reduction gearboxes are designed to transmit high torque by reducing the high input speed to the desired output speed. This being the reason a gearbox is widely used and a common piece of equipment through heavy industry driving conveyors, mills, crushers and pumps.

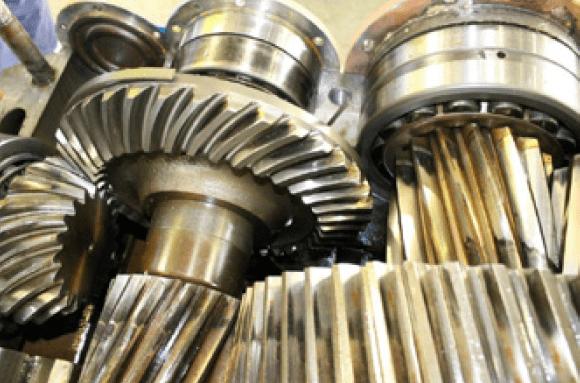

The gears throughout a gearbox are precision manufactured with high accuracy that require trained technicians to assemble and install. It is not unusual for a simple reduction gearbox to have many stages that may include bevel and pinion gears for drive/input direction changes, as well as multiple helical gears of differing ratios to achieve the desired output.

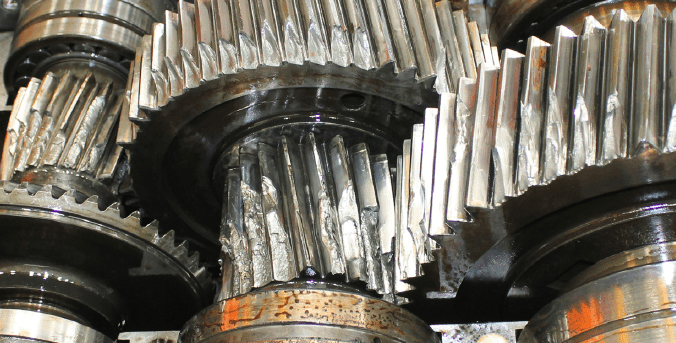

Helical gears are excellent for power transmission, durability and quiet operation, however there is a downside to this design. As these gears are manufactured with an angle, there is always a resultant axial (thrust) force that requires attention.
In applications where this axial load becomes extremely large, the helical gears are cut in opposing directions, often referred to as ‘herringbone gears’. This design requires:
- Increasing the gearbox sizing
- More accuracy in assembly and
- Adds additional cost in the precision
In operation however, this gear design will not result in axial (thrust) loads. In the more common helical and bevel/ pinion gear drives, the resulting axial (thrust) loading must be borne by the supporting bearings. Often, the choice of bearings is based on load carrying capacity and theoretical bearing life, without an essential understanding of the bearing and its fundamental design.
Bearing loads can be pure radial, pure axial or a combination of the two. Generally, most applications have a combination of these two. Bearings are designed to take different loads, with most able to accommodate combinations of loads. A ball bearing, for example, is designed to accommodate radial loads, however, it is able to support some axial (thrust) loading and therefore is excellent to use in an electric motor, as this bearing will positively locate the rotor. In this example there will also be some shaft thermal growth. To eliminate the risk of bearing ‘cross-location’, a cylindrical roller bearing can be utilised. This type of bearing is available in many configurations. It can be used as there are configurations that will allow for axial movement within the bearing itself, while still maintaining radial load carrying.

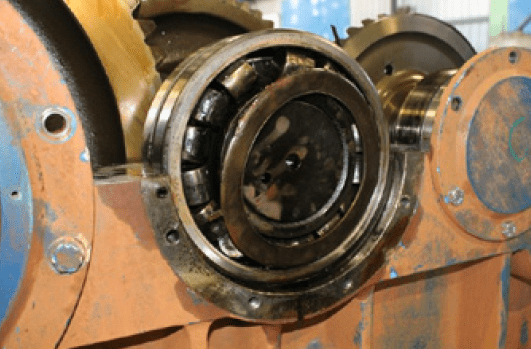

In the case of spherical roller bearings, the ability to misalign whilst allowing rotation without compromising load carrying capacity is excellent. These bearings are an excellent design for use in a conveyor pulley as there is always difficulty in maintaining accurate alignment and the applied radial loading is usually high. Furthermore, these bearings also have the ability to ‘locate’ the shaft by accommodating small axial (thrust) loads.
The disadvantage, or downside, to a spherical roller bearing is that by nature of its internal design, there is a compromise to rolling efficiency. Imagine trying to roll a wine barrel down a hill – it’s not likely roll straight. The same is occurring within the spherical roller bearing – the rolling elements have a tendency to skew and slide, increasing operating temperatures. The critical component that maintains rolling element alignment is the cage. Without the cage, the rolling elements skew easily, resulting in catastrophic failure.
Why? Speed ratings are based on a standard that requires a specific load be applied with the bearing able to maintain a prescribed temperature at this ‘limiting’ speed. Some manufacturers have ‘reference speeds’ which differ from the ‘limiting speed. The measurement however is fundamentally the same. Gearboxes often have spherical roller bearings installed on slower speed reduction shafts which is interesting from a bearing application perspective.
Given these accuracy constraints, there appears to be a lack of fundamental bearing engineering knowledge on bearing selection. The application does not require the ability to misalign. There is likely to be resulting axial (thrust) loading and the gear separating forces are insufficient to maintain the minimum bearing load requirement to maintain rolling contact. The internal rolling inefficiencies and insufficient radial loading can combine with axial (thrust) loading to result in premature bearing failure. A bearing that is ideal for a conveyor pulley being used in a gearbox application may not be the best option.

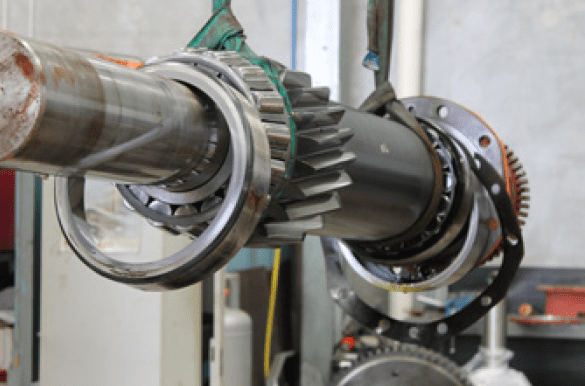

A bearing that is designed specifically to have the ability to accommodate a combination of radial and axial (thrust) loading, along with a load rating that maintains the minimum loading requirements can be considered. The tapered roller bearing is often an excellent alternative if spherical roller bearings are failing prematurely, or not providing adequate service life in gearbox applications.
Author: David Beattie
DASH Engineering – IMPARTIAL & INDEPENDENT Bearing Consultants
