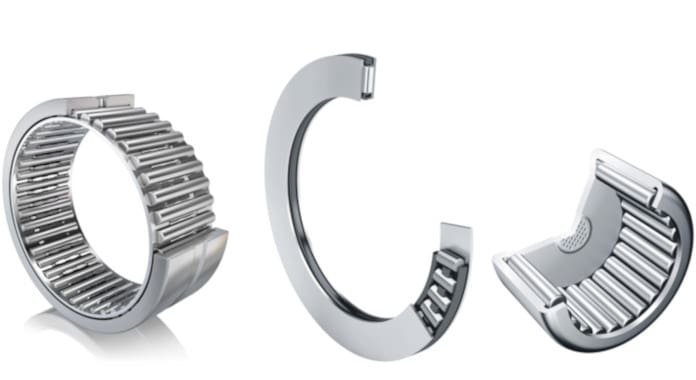

Low weight, minimal space requirements, smooth running and reliability are all important requirements of modern rail vehicle braking systems. Schaeffler provides a range of bearings for braking systems that includes needle roller bearings, drawn cup needle roller bearings with closed ends, thrust needle bearings and drawn cup roller clutches, each offering its own technical advantages for each specific braking application.
Needle roller bearings
Needle roller bearings are complete units that consist of a machined outer ring and a needle roller and cage assembly. They can also be supplied with removable inner rings if
necessary. The low radial section height enables extremely compact designs. They can be relubricated via the outer ring and can also be supplied with seals if required. The bearings are characterised by their high radial load carrying capacity.
Drawn cup needle roller bearings
Drawn cup needle roller bearings with open and closed ends consist of thin-walled outer rings and needle roller and cage assemblies and can be supplied with seals if required. They require less space in a radial direction than needle roller bearings. Drawn cup needle roller bearings with closed ends have a closed base that provides protection against moisture and contamination.
Drawn cup roller clutches with bearing assembly
Modern brakes have systems for automatically adjusting the brake pad as it wears.
Drawn cup roller clutches with bearing supports are used as shifting clutches for the
adjusting movement in these mechanisms.
Thrust washers
Thrust washers are used if the adjoining surfaces cannot be used as raceways when
using thrust needle roller or cylindrical roller and cage assemblies. They serve as
hardened raceways for thrust needle roller and thrust cylindrical roller bearings.
Thrust needle roller and cage assemblies
Thrust needle roller and cage assemblies consist of a thrust cage and needle rollers.
They have a low axial section height and require hardened and ground surfaces as
raceways. The bearings can support axial forces in one load direction. Thrust needle
roller and cage assemblies have a particularly high axial load carrying capacity, as well as
high rigidity and can be combined with thrust bearing washers.
For more information, or to request your free copy of the brochure “Expertise in Bearing
Technology and Services for Rail Vehicles“ please contact Schaeffler UK’s
